A Short Definition

A Working Definition

Handwriting recognition

• \(T\): classify handwritten words in images
• \(P\): share of correctly classified words
• \(E\): labelled dataset of handwritten words

Autonomous driving

• \(T\): drive a highway from camera input
• \(P\): average distance before human takes over
• \(E\): sequence of (image, steering command) pairs from a human driver

Three Flavours of ML

1. Supervised learning – learn \(f: X \to Y\) from labelled data
   • Regression (continuous \(Y\)): predict rent from features
   • Classification (discrete \(Y\)): spam vs ham, sepsis vs not
2. Unsupervised learning – find structure in unlabelled data
   • Clustering, dimension reduction
3. Reinforcement learning – an agent learns by trial-and-error from rewards
   • AlphaGo, robot locomotion

Why economists care

• Healthcare: predict sepsis risk from hundreds of sensor streams (Kleinberg et al., 2015).
• Finance: predict loan default from mobile-phone metadata when credit history is missing (Bjorkegren & Grissen, 2017).
• Urban policy: map poverty from satellite imagery with millions of pixel features (Naik et al., 2017).
• Labour: identify minimum-wage workers from rich demographics (Cengiz et al., 2024).

Regression vs Classification

Types of Classification

Running Example: Iris

• 150 flowers, 50 of each species
• 4 features: sepal length/width, petal length/width
• Goal: predict the species

library(ggplot2)
ggplot(iris, aes(Petal.Length, Petal.Width, color = Species)) +
  geom_point() + theme_minimal()

\(k\)-Nearest Neighbours

Idea: to classify a new point \(x_0\), look at the \(k\) closest training points and take a majority vote.

• No parameters, no training – just store the data.
• Choice of \(k\) controls how “smooth” the decision boundary is.
• Sensitive to feature scale – standardise first.

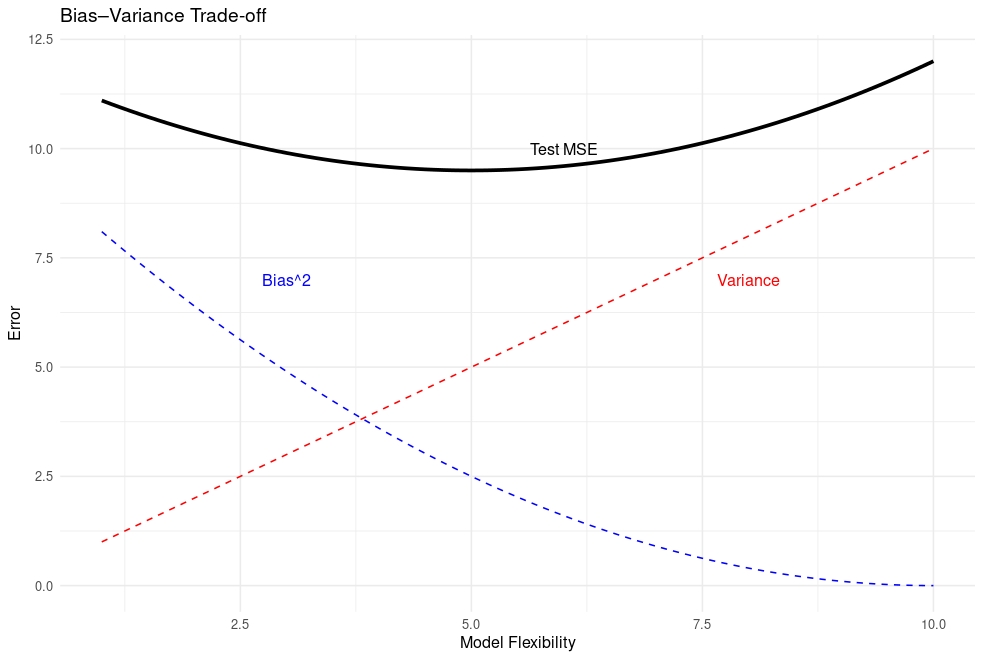

The Bias–Variance Trade-Off, Visualised

Bias–Variance Trade-Off

\(k\)-NN in R

library(class)

set.seed(1234)
train_idx  <- sample(seq_len(nrow(iris)), size = 0.7 * nrow(iris))
train_data <- iris[train_idx, ]
test_data  <- iris[-train_idx, ]

pred <- knn(train = train_data[, 1:4],
            test  = test_data[, 1:4],
            cl    = train_data$Species,
            k     = 5)

table(test_data$Species, pred)

Decision Trees

• Recursively split the feature space along one variable at a time.
• Each split picks the variable + threshold that best separates the classes.
• Final prediction = majority class in the leaf.

Pros: very interpretable, handles numeric and categorical features, no scaling needed.

Cons: unstable, prone to overfitting.

A Tree on Iris

library(rpart)
library(rpart.plot)

fit <- rpart(Species ~ ., data = iris, method = "class")
rpart.plot(fit)

Confusion Matrix

For a binary classifier with classes positive / negative:

Train Error Lies

• Training error is non-increasing in model complexity – it always looks better with more parameters.
• We need test-set performance, but data is scarce.

\(k\)-Fold Cross-Validation

\[ \mathrm{CV}_K = \frac{1}{K} \sum_{k=1}^{K} \mathrm{MSE}_k \]

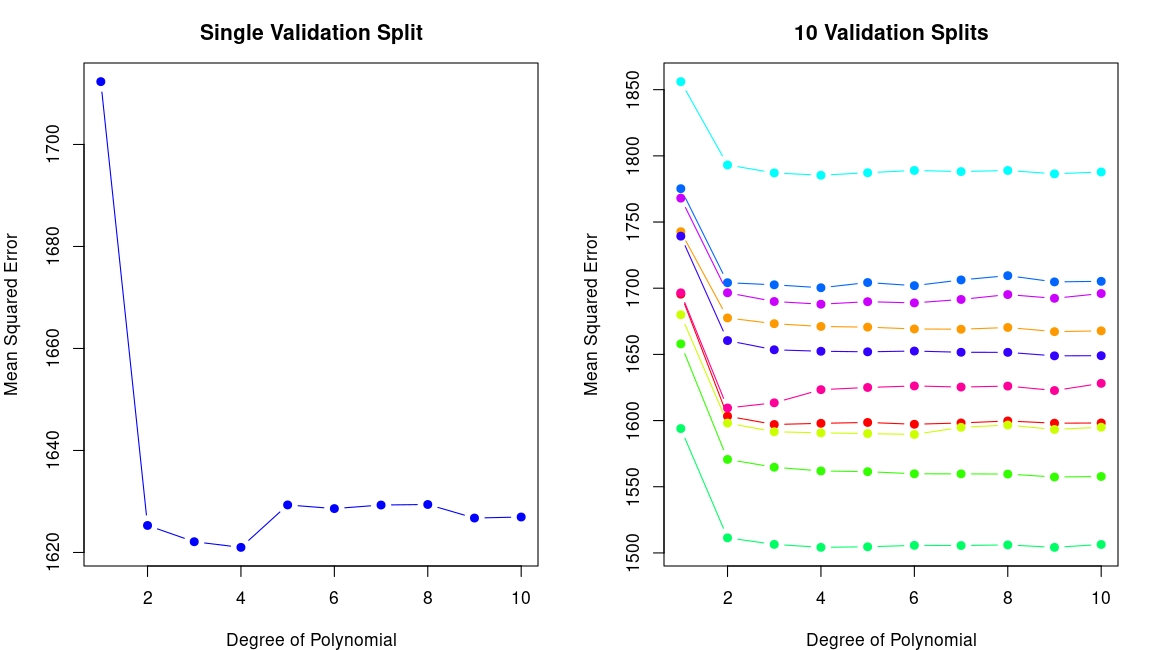

Wage–Age: Why CV Matters

A single validation split gives a noisy answer.

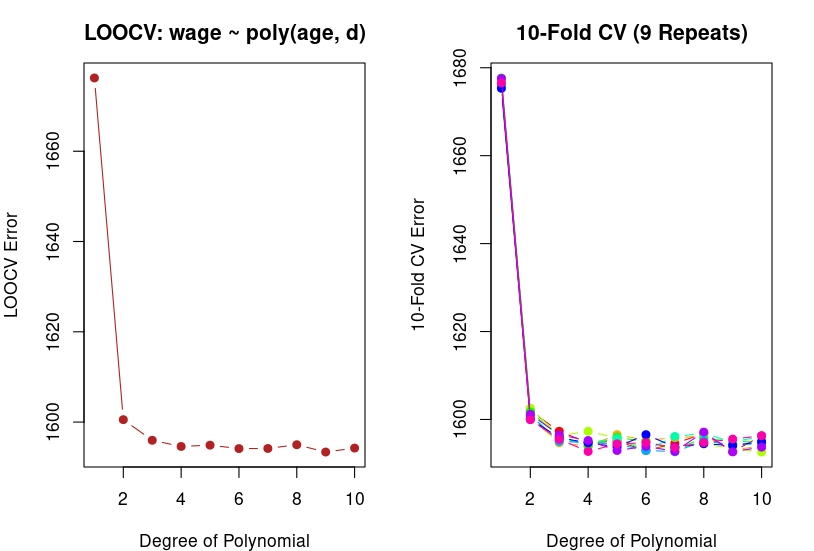

\(K\)-Fold Smooths Things Out

10-fold CV across 9 repeats: the polynomial-degree choice is now clear.

What Do We Mean by \(n\) and \(p\)?

OLS Breaks Down When \(p\) Is Large

1. Rank deficiency (\(p \ge n\)): infinitely many least-squares solutions.
2. Multicollinearity: highly correlated predictors \(\Rightarrow\) huge coefficient variance.
3. Noise variables: irrelevant \(X_j\) inflate variance without adding signal.
4. Rarely sparse: OLS almost never returns exact zeros, so it’s hard to interpret.

The General Idea

\[ \min_{\boldsymbol\beta}\;\; \underbrace{\frac{1}{n}\sum_{i=1}^{n}\bigl(y_i - \alpha - x_i'\boldsymbol\beta\bigr)^2}_{\text{loss}} \;+\; \underbrace{\lambda \sum_{j=1}^{p} k(|\beta_j|)}_{\text{penalty}} \]

• The penalty shrinks coefficients toward zero.
• \(\lambda \ge 0\) controls the strength of shrinkage; choose by cross-validation.
• Different choices of \(k(\cdot)\) give Ridge, LASSO, or Elastic Net.

Ridge Regression (\(\ell_2\))

\[ \hat{\boldsymbol\beta}^{\text{ridge}} = \arg\min_{\boldsymbol\beta}\; \mathrm{RSS}(\boldsymbol\beta) + \lambda \sum_{j=1}^{p} \beta_j^{2} \]

• Quadratic penalty \(\Rightarrow\) all \(\beta_j\) get shrunk, but none are exactly zero.
• Great when predictors are many and strongly correlated – shrinks them toward each other.
• Standardise predictors before fitting.

LASSO Regression (\(\ell_1\))

\[ \hat{\boldsymbol\beta}^{\text{lasso}} = \arg\min_{\boldsymbol\beta}\; \mathrm{RSS}(\boldsymbol\beta) + \lambda \sum_{j=1}^{p} |\beta_j| \]

• \(\ell_1\) geometry has corners – many coefficients shrink to exactly 0.
• Built-in variable selection: sparse, interpretable models.
• Workhorse when \(p \gg n\).

Elastic Net (\(\ell_1 + \ell_2\))

\[ \hat{\boldsymbol\beta}^{\text{EN}} = \arg\min_{\boldsymbol\beta}\; \mathrm{RSS}(\boldsymbol\beta) + \lambda \Bigl[ \alpha \sum_{j} |\beta_j| + (1 - \alpha)\sum_{j} \beta_j^{2} \Bigr] \]

• \(\alpha = 1\): LASSO. \(\alpha = 0\): Ridge. In between: a mix.
• Keeps sparsity and a grouping effect – correlated predictors enter together.
• Two hyperparameters \((\lambda, \alpha)\), tuned with a 2-D CV grid.

Cheat-Sheet

LASSO with CV in R

library(glmnet)

X <- model.matrix(wage ~ ., data = Wage)[, -1]
y <- Wage$wage

fit <- cv.glmnet(X, y, alpha = 1, standardize = TRUE)
# alpha = 1 : LASSO
# alpha = 0 : Ridge
# 0 < alpha < 1 : Elastic Net

plot(fit)
coef(fit, s = "lambda.min")

Solow and the Convergence Hypothesis

• The neoclassical (Solow) growth model has diminishing returns to capital.
• A country far below its steady state has high marginal product of capital \(\Rightarrow\) invests, accumulates, grows fast.
• A country near its steady state earns lower returns \(\Rightarrow\) grows slowly.

The Empirical Puzzle

Barro-Lee data, 90 countries, 1960–85. The bivariate slope is essentially zero.

Estimated \(\hat\beta = +0.001\), \(p = 0.83\). No unconditional convergence. Did Solow fail?

Conditional Convergence (Barro, 1991)

Maybe countries converge – but each to its own steady state, which depends on:

• Human capital: schooling, life expectancy.
• Demographics: fertility, population growth.
• Fiscal policy: government consumption, taxes.
• Openness: trade share, FDI.
• Institutions / stability: rule of law, inflation, political instability.

Why This Is a Machine-Learning Problem

• With 60 candidate controls and \(n = 90\), classical OLS is nearly saturated and standard errors explode.
• \(t\)-tests on individual controls are unreliable: multiple testing, multicollinearity.
• “Pick the right controls and you get convergence” is uncomfortably close to specification searching.

PDS-LASSO Recovers Convergence

Barro-Lee 1960–85. Bivariate OLS sees nothing; full OLS is noisy; PDS-LASSO recovers \(\hat\beta \approx -0.05\), \(p \approx 0.002\).

Interpretation: controlling for human capital, demographics, fiscal policy and openness, poor countries did catch up at ~5% per year.

Does It Still Hold Today? PWT 1995–2019

We rebuild the analysis with Penn World Table 10.01 + World Bank WDI:

• 172 countries, 25 years (1995–2019).
• 11 base controls \(\times\) squares and interactions \(\Rightarrow\) \(p = 77\).

This time even the bivariate slope is negative and significant: \(\hat\beta = -0.006\), \(p < 0.001\). Convergence is now visible in the raw data – rise of China, India, and other emerging markets.

Does It Still Hold Today? Results

Bivariate OLS, full OLS, and PDS-LASSO across both periods.

ML in Empirical Econ: Other Examples

• Cengiz, Dube, Lindner & Zentler-Munro (2024, JLE) – minimum wages: Elastic Net predicts \(\Pr(\text{wage}_i \le \text{MW})\) from CPS demographics; event-study DiD around 159 state hikes shows +2–3% wages, no employment loss, ~75% coverage.
• Angrist & Frandsen (2022, JLE) – “Machine Labor”: PDS-LASSO with ~384 application-process controls confirms there’s no elite-college wage premium.
• Gilchrist & Sands (2016, JPE): LASSO selects weather-based instruments for movie opening-weekend attendance; +1% opening lifts five-week attendance by ~2%.

Supervised vs Unsupervised

• Supervised: we have labels \(y_i\), we learn \(f: X \to Y\).
• Unsupervised: no labels – find structure (groups, low-D representations).

Two Big Families

Dimension reduction – compress many features into a few

• PCA, t-SNE, UMAP, autoencoders
• Use: visualisation, multicollinearity, feature construction

Clustering – group similar observations

• \(k\)-means, hierarchical, DBSCAN, Gaussian mixtures
• Use: customer segmentation, disease subtypes, anomaly detection

Principal Component Analysis

• Find directions (lines / planes / hyper-planes) that capture maximum variance.
• Components are orthogonal and ordered by how much variance they explain.
• Often a handful of components capture >90% of the variation.

PCA: The Geometric Idea

PCA in R

iris_scaled <- scale(iris[, 1:4])

pca <- prcomp(iris_scaled)
summary(pca)

pca_data <- as.data.frame(pca$x)
pca_data$Species <- iris$Species

ggplot(pca_data, aes(PC1, PC2, color = Species)) +
  geom_point() +
  theme_minimal() +
  labs(title = "PCA of iris")

\(k\)-Means Clustering

Algorithm

1. Pick \(K\) (the number of clusters).
2. Initialise \(K\) cluster centres at random.
3. Assign each point to the nearest centre.
4. Recompute each centre as the mean of its assigned points.
5. Repeat 3–4 until assignments stop changing.

Choosing \(K\): The Elbow Method

\(k\)-Means in R

set.seed(123)
km <- kmeans(iris_scaled, centers = 3)

cluster_data <- as.data.frame(pca$x)
cluster_data$Cluster <- factor(km$cluster)

ggplot(cluster_data, aes(PC1, PC2, color = Cluster)) +
  geom_point() +
  theme_minimal() +
  labs(title = "k-means on iris (shown in PCA space)")

tidymodels in R

recipe() \(\rightarrow\) workflow() \(\rightarrow\) tune_grid()

library(tidymodels)

rec <- recipe(wage ~ ., data = train_data) |>
  step_normalize(all_numeric_predictors()) |>
  step_dummy(all_nominal_predictors())

lasso_spec <- linear_reg(penalty = tune(), mixture = 1) |>
  set_engine("glmnet")

wf <- workflow() |> add_recipe(rec) |> add_model(lasso_spec)

folds <- vfold_cv(train_data, v = 10)
grid  <- grid_regular(penalty(), levels = 50)

results    <- tune_grid(wf, resamples = folds, grid = grid)
best       <- select_best(results, metric = "rmse")
final_fit  <- finalize_workflow(wf, best) |> fit(data = train_data)

Heterogeneous Treatment Effects

LASSO and friends estimate average effects. What if a policy helps some people and hurts others?

Causal forests (Wager & Athey, 2018) estimate the conditional average treatment effect

\[ \tau(x) = \mathbb{E}[Y(1) - Y(0) \mid X = x] \]

by growing an ensemble of trees that split to maximise treatment-effect heterogeneity – with sample-splitting that yields valid confidence intervals.

library(grf)
cf <- causal_forest(X = as.matrix(covariates), Y = outcome, W = treatment)
tau_hat <- predict(cf)$predictions

More in the appendix; for today, just know the tool exists.

Key Take-Aways

• ML = improving at a task \(T\) from experience \(E\), measured by \(P\). Supervised / unsupervised / reinforcement.
• Bias–variance trade-off drives every modelling choice; use cross-validation to land in the sweet spot.
• Shrinkage: Ridge keeps everything, LASSO selects, Elastic Net does both. The default workhorse when \(p \gg n\).
• PCA and \(k\)-means are the unsupervised counterparts – compress and cluster.
• For applied work: tidymodels in R is the unified pipeline.
• Causal forests estimate heterogeneous effects when treatment is exogenous.
• ML helps identification; it does not create it.

References

Measuring Quality of Fit: MSE

\[ \text{MSE} = \frac{1}{n} \sum_{i=1}^{n} (y_i - \hat{f}(x_i))^2 \]

• \(y_i\) is the true value for observation \(i\).
• \(\hat{f}(x_i)\) is the predicted value from our model.
• Lower MSE means smaller average prediction error.

Bias–Variance Decomposition (Formal)

For any fixed test point \(x_0\), the expected test MSE decomposes into three non-negative parts:

\[ \mathbb{E}\!\bigl[(y_0 - \hat{f}(x_0))^2\bigr] = \underbrace{\operatorname{Var}\!\bigl[\hat{f}(x_0)\bigr]}_{\text{variance}} + \underbrace{\bigl(\operatorname{Bias}\!\bigl[\hat{f}(x_0)\bigr]\bigr)^2}_{\text{bias}^2} + \underbrace{\operatorname{Var}(\varepsilon)}_{\text{irreducible error}} \]

• Variance: how much \(\hat{f}\) changes if we refit on a new training sample.
• Bias: error from approximating an unknown \(f\) with a simpler model.
• Irreducible error: noise we cannot model away.

Bias–Variance Trade-Off in R

flexibility <- seq(1, 10, by = 0.1)
bias2    <- (10 - flexibility)^2 / 10
variance <- flexibility
test_mse <- bias2 + variance + 2  # include irreducible error

df <- data.frame(flexibility, bias2, variance, test_mse)

ggplot(df, aes(x = flexibility)) +
  geom_line(aes(y = bias2),    color = "blue", linetype = "dashed") +
  geom_line(aes(y = variance), color = "red",  linetype = "dashed") +
  geom_line(aes(y = test_mse), color = "black", linewidth = 1.2) +
  labs(y = "Error", x = "Model flexibility") +
  theme_minimal()

OLS Variance Explosion: Monte Carlo

library(tidyverse)
set.seed(1234)
test_mse <- sapply(seq(5, 50, by = 5), function(p) {
  beta  <- rep(c(1, 0), length.out = p)
  Sigma <- matrix(0.9, p, p) + diag(p) * 0.1

  mse <- replicate(200, {
    X       <- MASS::mvrnorm(50, rep(0, p), Sigma)
    y       <- X %*% beta + rnorm(50)
    test_X  <- MASS::mvrnorm(100, rep(0, p), Sigma)
    test_y  <- test_X %*% beta + rnorm(100)
    y_hat   <- predict(lm(y ~ X), newdata = data.frame(X = test_X))
    mean((test_y - y_hat)^2)
  })
  mean(mse)
})

Classical Diagnostics Fail in High Dimensions

• Adding predictors always drives training RSS down and \(R^2\) up – even pure noise.
• \(R^2\) and adjusted \(R^2\) are not reliable for picking a high-dimensional model.
• AIC / BIC depend on asymptotics where \(p\) is fixed.
• \(t\)-tests on individual \(\beta_j\) are distorted by multiple testing and multicollinearity.

Information Criteria

• AIC: \(\tfrac{1}{n}(\text{RSS} + 2 p \hat\sigma^2)\) – lower is better.
• BIC: \(\tfrac{1}{n}(\text{RSS} + \log(n)\, p \hat\sigma^2)\) – heavier penalty than AIC.
• Adjusted \(R^2\): \(1 - \tfrac{\text{RSS}/(n - p - 1)}{\text{TSS}/(n - 1)}\) – higher is better.

All push back against overfitting, but rely on \(p\) being small relative to \(n\).

Best Subset & Stepwise Selection

Best subset

1. Start with the null model \(\mathcal{M}_0\).
2. For each \(k = 1, \dots, p\) fit all \(\binom{p}{k}\) models and keep the best.
3. Pick the size with the lowest CV / IC.

LASSO vs Ridge: Geometry

The constrained forms:

\[ \min_{\boldsymbol\beta}\;\mathrm{RSS}(\boldsymbol\beta) \quad \text{s.t.}\;\sum_j |\beta_j| \le s \quad \text{(LASSO)} \]

\[ \min_{\boldsymbol\beta}\;\mathrm{RSS}(\boldsymbol\beta) \quad \text{s.t.}\;\sum_j \beta_j^2 \le s \quad \text{(Ridge)} \]

• Ridge ball is round – RSS contours touch it on an edge \(\Rightarrow\) no zeros.
• LASSO ball is a diamond – contours touch a corner \(\Rightarrow\) sparsity.

Log-Spaced \(\lambda\) Grid

• Shrinkage is highly nonlinear near zero – small \(\lambda\) moves cause big coefficient shifts.
• A log grid samples densely where the action is.
• Linear grids waste effort at large \(\lambda\) where every \(\beta_j = 0\).

Typical grid:

\[ \lambda \in \{10^{-4}, 10^{-3.9}, \dots, 10^{2}\}\quad\text{(100 values, log-spaced)} \]

Picking \(\lambda\) and Doing Inference After Selection

• \(K\)-fold CV is the default in glmnet / scikit-learn.
• Information criteria: AICc, BIC, EBIC.
• Theory-driven: \(\lambda \propto \sqrt{\log p / n}\) (Belloni et al., 2011).

Post-Double-Selection LASSO

Estimate the treatment effect \(\alpha\) in

\[ Y = \alpha D + X'\beta + \varepsilon, \qquad p \gg n \]

1. LASSO of \(Y\) on \(X\) \(\rightarrow\) selected set \(X_Y\).
2. LASSO of \(D\) on \(X\) \(\rightarrow\) selected set \(X_D\).
3. \(X_S = X_Y \cup X_D\).
4. OLS of \(Y\) on \(D\) and \(X_S\).

Captures variables predictive of \(Y\) or \(D\) – protects against omitted-variable bias and keeps inference valid.

Detail: Cengiz et al. (2024)

1. Outcome: \(y_i = \mathbb{1}\{\text{hourly wage}_i \le \text{MW}_{st}\}\) on CPS 2013 micro data.
2. Features: age splines, gender, race, education, marital status, industry, occupation, hours, state FE, interactions (\(p \approx 150\)).
3. Model: Logistic Elastic Net, predictors \(z\)-scored.
4. Tuning: 10-fold CV on \((\lambda, \alpha)\); optimum near \(\alpha \approx 0.5\).
5. Output: predicted score \(\hat p_i = \Pr(y_i = 1 \mid X_i)\) defines high-probability and high-recall treatment groups.
6. Causal step: event-study DiD around 159 state minimum-wage hikes.

Detail: Angrist & Frandsen (2022)

• Outcome: \(Y_i = \log(\text{weekly wage}_i)\) for male college graduates.
• Treatment: college attributes (private, elite, …).
• Controls: ~384 application-process variables (schools applied to, SATs, interactions).
• Method: post-double-selection LASSO (Belloni et al., 2014).

Detail: Gilchrist & Sands (2016)

• Outcome: total movie attendance over 5 post-release weekends.
• Treatment: opening-weekend attendance (endogenous – driven by quality).
• Instruments: local weather + interactions (rain \(\times\) weekend \(\times\) region) – many candidates.
• Method: LASSO selects relevant instruments; 2SLS uses the selected set.

Causal Forests in Detail

library(grf)

cf <- causal_forest(
  X = as.matrix(covariates),
  Y = outcome,
  W = treatment,
  num.trees = 2000
)

tau_hat <- predict(cf)$predictions
average_treatment_effect(cf)
variable_importance(cf)

• “Honest” trees: one subsample grows the tree, another estimates leaf effects.
• Yields valid asymptotic confidence intervals for \(\tau(x)\).
• Use when treatment \(W\) is (conditionally) exogenous and you want who benefits how much.

Practical Tips

• Always visualise coefficient paths against \(\lambda\).
• Compare out-of-sample \(R^2\) to a vanilla OLS baseline.
• Use stability selection (Meinshausen & Bühlmann) to gauge which variables matter.
• glmnet::relax re-fits OLS on the selected support to reduce shrinkage bias.
• For causal work: combine ML with orthogonal scores (Double ML).
